Description
AAF Flanders FM2-LE, Part Number 3010352-005, 2 x 2.
Additional sizes are available on request for most ranges.
For pricing and availability please call 562-436-4228 or email info@industrialfiltrationinc.com.
Back to FM2-LE

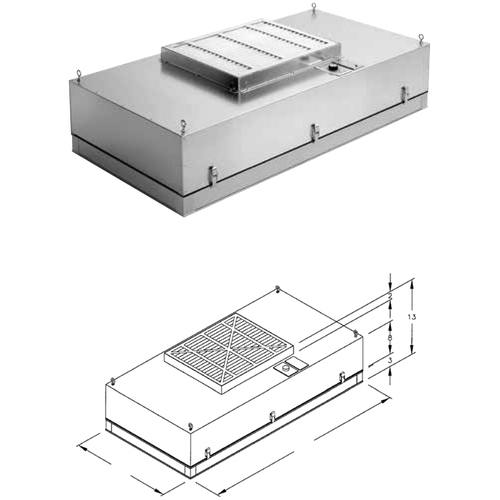

AAF FM2-LE 3010352-005 – 2 x 2
Call for Price
Product Type: HEPA and ULPA Filters
Series: FM2-LE
Available Styles: Prefilter, Duct Collar
Housing Material: Mill Finish Aluminum
Available Efficiencies: HEPA, ULPA
Module Type: Fan Unit, Replaceable Filter
Protective Grill: Expanded Steel, White Powder Coated
Fan/Motor Assembly: 1/3 HP Backward- Curved Fan
Max Operating Temperature: 150°F (68°C)
Nominal Size: 2 x 2
Actual Size: 23-5/8 x 23-5/8 x 13
Dust Collar Size (in.): 10
Rated SCFM @ 100 FPM: 340
Std. Pkg. Qty.: 1
Shipping Weight (lbs/box): 30.0
Cubic Ft.: 3.1
Configuration: Aluminum Housing w/Steel Faceguard; 99.99% scan-tested HEPA filter, 115v, 60Hz Motor
Related products
AAF FM2-LE 3010345-002 – 2 x 3
Product Type: HEPA and ULPA Filters
Series: FM2-LE
Available Styles: Prefilter, Duct Collar
Housing Material: Mill Finish Aluminum
Available Efficiencies: HEPA, ULPA
Module Type: Fan Unit, Replaceable Filter
Protective Grill: Expanded Steel, White Powder Coated
Fan/Motor Assembly: 1/3 HP Backward- Curved Fan
Max Operating Temperature: 150°F (68°C)
Nominal Size: 2 x 3
Actual Size: 23-5/8 x 35-5/8 x 13
Dust Collar Size (in.): NA
Rated SCFM @ 100 FPM: 525
Std. Pkg. Qty.: 1
Shipping Weight (lbs/box): 50.0
Cubic Ft.: 1.6
Configuration: Aluminum Housing w/Steel Faceguard; 99.99% scan-tested HEPA filter, 115v, 60Hz Motor
AAF FM2-LE 3010337-001 – 2 x 4
Product Type: HEPA and ULPA Filters
Series: FM2-LE
Available Styles: Prefilter, Duct Collar
Housing Material: Mill Finish Aluminum
Available Efficiencies: HEPA, ULPA
Module Type: Fan Unit, Replaceable Filter
Protective Grill: Expanded Steel, White Powder Coated
Fan/Motor Assembly: 1/3 HP Backward- Curved Fan
Max Operating Temperature: 150°F (68°C)
Nominal Size: 2 x 4
Actual Size: 23-5/8 x 47-5/8 x 13
Dust Collar Size (in.): NA
Rated SCFM @ 100 FPM: 710
Std. Pkg. Qty.: 1
Shipping Weight (lbs/box): 60.0
Cubic Ft.: 2.1
Configuration: Aluminum Housing w/Steel Faceguard; 99.99% scan-tested HEPA filter, 115v, 60Hz Motor
AAF FM2-LE 3010345-001 – 2 x 3
Product Type: HEPA and ULPA Filters
Series: FM2-LE
Available Styles: Prefilter, Duct Collar
Housing Material: Mill Finish Aluminum
Available Efficiencies: HEPA, ULPA
Module Type: Fan Unit, Replaceable Filter
Protective Grill: Expanded Steel, White Powder Coated
Fan/Motor Assembly: 1/3 HP Backward- Curved Fan
Max Operating Temperature: 150°F (68°C)
Nominal Size: 2 x 3
Actual Size: 23-5/8 x 35-5/8 x 13
Dust Collar Size (in.): NA
Rated SCFM @ 100 FPM: 525
Std. Pkg. Qty.: 1
Shipping Weight (lbs/box): 50.0
Cubic Ft.: 1.6
Configuration: Aluminum Housing w/Steel Faceguard; 99.99% scan-tested HEPA filter, 115v, 60Hz Motor
AAF FM2-LE 3010337-005 – 2 x 4
Product Type: HEPA and ULPA Filters
Series: FM2-LE
Available Styles: Prefilter, Duct Collar
Housing Material: Mill Finish Aluminum
Available Efficiencies: HEPA, ULPA
Module Type: Fan Unit, Replaceable Filter
Protective Grill: Expanded Steel, White Powder Coated
Fan/Motor Assembly: 1/3 HP Backward- Curved Fan
Max Operating Temperature: 150°F (68°C)
Nominal Size: 2 x 4
Actual Size: 23-5/8 x 47-5/8 x 13
Dust Collar Size (in.): 10
Rated SCFM @ 100 FPM: 710
Std. Pkg. Qty.: 1
Shipping Weight (lbs/box): 60.0
Cubic Ft.: 0.0
Configuration: Aluminum Housing w/Steel Faceguard; 99.99% scan-tested HEPA filter, 115v, 60Hz Motor
